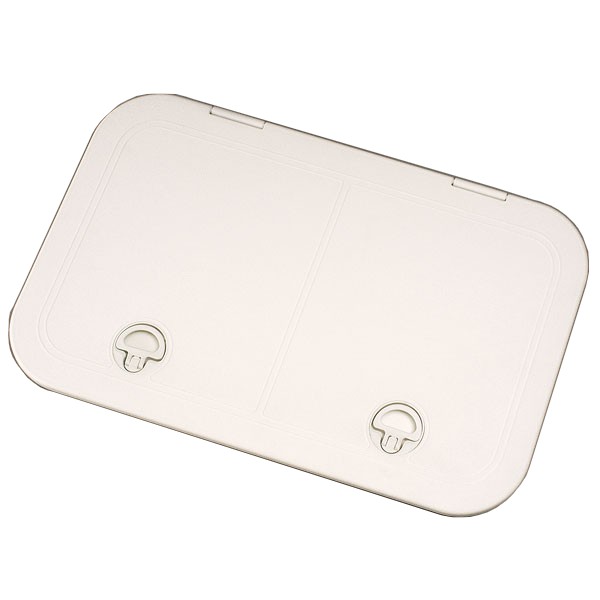

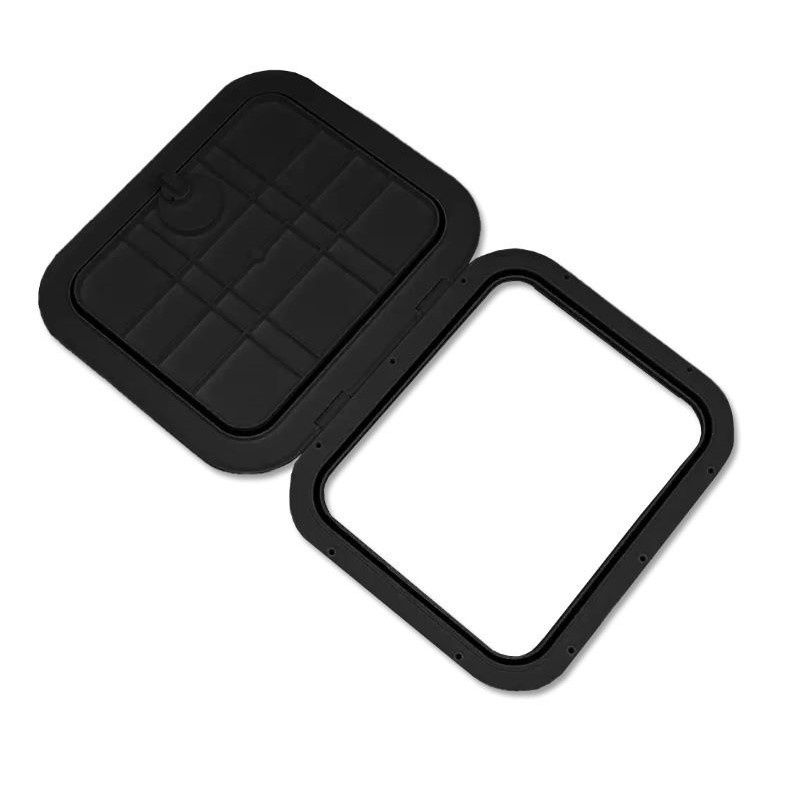

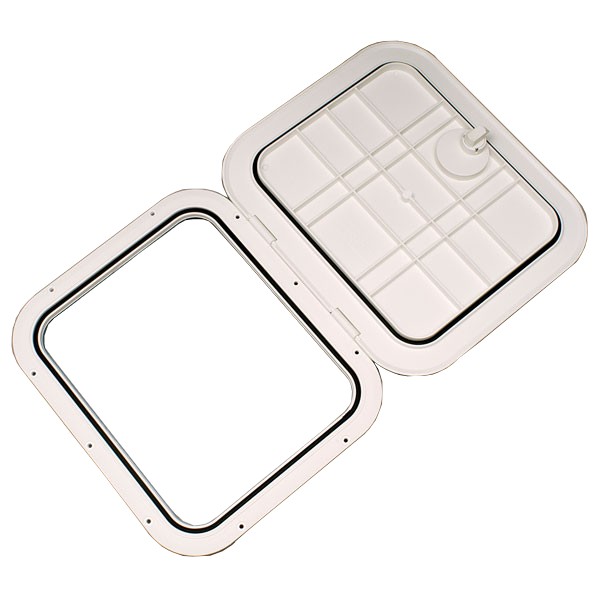

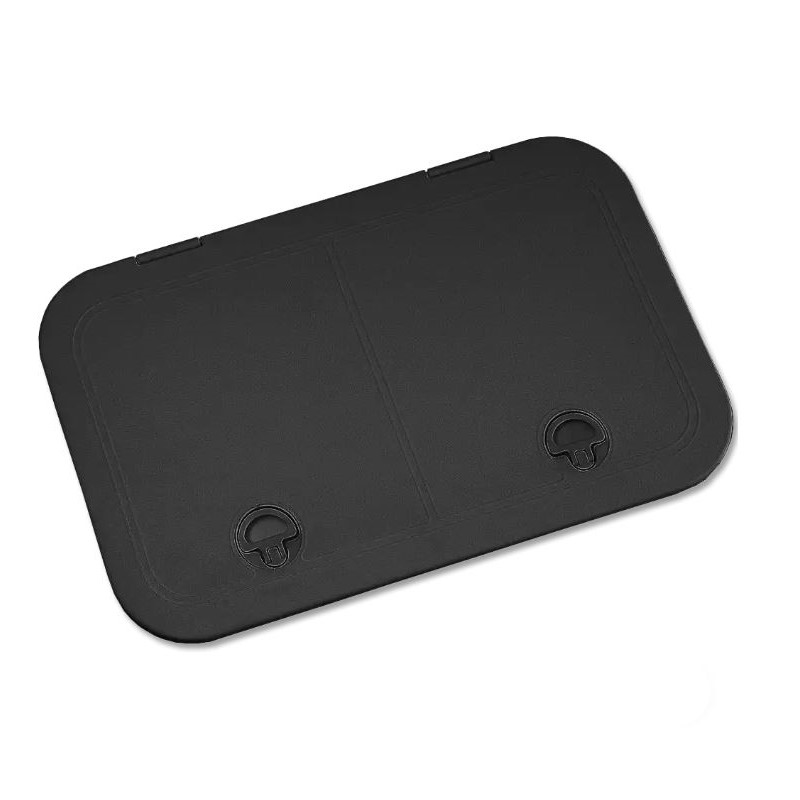

Bomar Twin Seal Inspection Hatches

Molded of high impact UV stable polypropylene - Clean textured lid - Low profile - No screws visible from the exterior - Strong lid with support bars - Double gasket for optimum sealing - Comes with positive twist latch

Description

01-7711-W-T (White) / 01-7711-11-T (Black):

Diameter of Lid - 260mm x 357mm (10 1/4" x 14 1/16")

Hatch Opening - 181mm x 282mm (7 1/8" x 11 1/8")

Cut Out - 208mm x 310mm (8 1/16" x 12 3/16")

01-7812-W-T (White) / 01-7812-11-T (Black):

Diameter of Lid - 329mm x 379mm (12 15/16" x 14 15/16")

Hatch Opening - 252mm x 305mm (9 13/16" x 12")

Cut Out - 276mm x 332mm (10 7/8" x 13 1/16")

01-7912-W-T (White) / 01-7912-11-T (Black):

Diameter of Lid - 229mm x 305mm (9" x 12")

Hatch Opening - 149mm x 535mm (5 7/8" x 21 1/16")

Cut Out - 176mm x 257mm (6 15/16" x 10 1/8")

01-71317-W-T (White) / 01-71317-11-T (Black):

Diameter of Lid - 330mm x 445mm (13" x 17 1/2")

Hatch Opening - 251mm x 370mm (9 7/8" x 14 9/16")

Cut Out - 278mm x 397mm (10 15/16" x 15 5/8")

01-71119-W-T (White) / 01-71119-11-T (Black):

Diameter of Lid - 279mm x 483mm (11" x 19")

Hatch Opening - 200mm x 408mm (7 7/8" x 16 1/16")

Cut Out - 227mm x 435mm (8 15/16" x 17 1/8")

01-71020-W-T (White) / 01-71020-11-T (Black):

Diameter of Lid- 360mm x 584mm (14 3/16" x 23")

Hatch Opening - 281mm x 509mm (11 1/16" x 20 1/16")

Cut Out - 308mm x 721mm (12 1/8" x 21 3/8")

01-7924-W-T (White) / 01-7924-11-T (Black):

Diameter of Lid - 229mm x 609mm     (9" x 24")

Hatch Opening - 149mm x 433mm (5 7/8" x 17 1/16")

Cut Out -             176mm x 562mm (6 15/16" x 22 1/8")

01-71320-W-T (White) / 01-71320-11-T (Black)

Diameter of Lid - 330mm x 508mm (13" x 20")

Hatch Opening - 251mm x 433mm (9 7/8" x 17 1/16")

Cut Out - 278mm x 460mm (10 15/16" x 18 1/8")

01-71621-W-T (White) / 01-71621-11-T (Black):

Diameter of Lid - 406mm x 533mm (16" x 21")

Hatch Opening - 327mm x 459mm (12 7/8" x 18 1/16")

Cut Out - 354mm x 486mm (13 15/16" x 19 1/8")

01-71624-W-T (White) / 01-71624-11-T (Black):

Diameter of Lid - 406mm x 610mm (16" x 24 1/64")

Hatch Opening - 327mm x 535mm (12 7/8" x 21 1/16")

Cut Out - 354mm x 562mm (13 15/16" x 22 1/8")

01-71030-W-T (White) / 01-71030-11-T (Black):

Diameter of Lid - 341mm x 768mm (13 7/16" x 30 1/4")

Hatch Opening - 262mm x 694mm (10 5/16" x 27 5/16")

Hole Cut Out - 289mm x 721mm (11 3/8" x 28 3/8")

01-71336-W-T (White) / 01-71336-11-T (Black)

Diameter of Lid - 330mm x 914mm (13" x 36")

Hatch Opening - 251mm x 840mm (9 7/8" x 33 1/16")

Hole Cut Out - 278mm x 867mm (10 15/16" x 34 1/8")

Additional

Options260mm x 357mm (White), 260mm x 357mm (Black), 329mm x 379mm (White), 329mm x 379mm (Black), 229mm x 305mm (White), 229mm x 305mm (Black), 330mm x 445mm (White), 330mm x 445mm (Black), 279mm x 483mm (White), 279mm x 483mm (Black), 360mm x 584mm (White), 360mm x 584mm (Black), 229mm x 610mm (White), 229mm x 610mm (Black), 330mm x 508mm (White), 330mm x 508mm (Black), 406mm x 533mm (White), 406mm x 533mm (Black), 406mm x 610mm (White), 406mm x 610mm (Black), 341mm x 768mm (White), 341mm x 768mm (Black), 330mm x 914mm (White), 330mm x 914mm (Black)
BrandBomar
