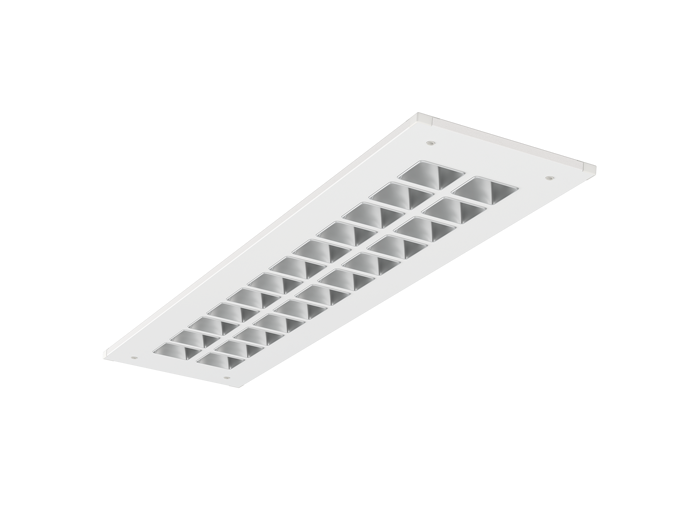

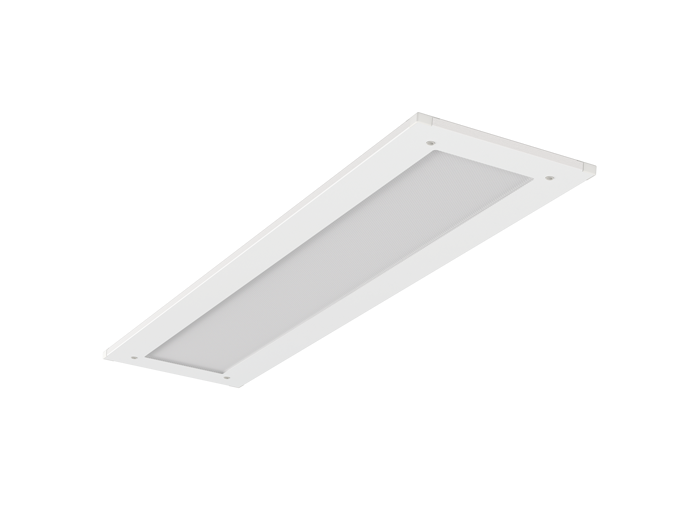

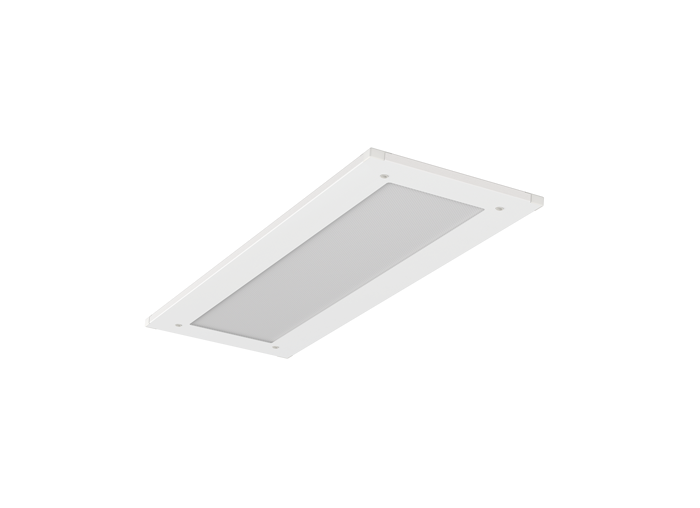

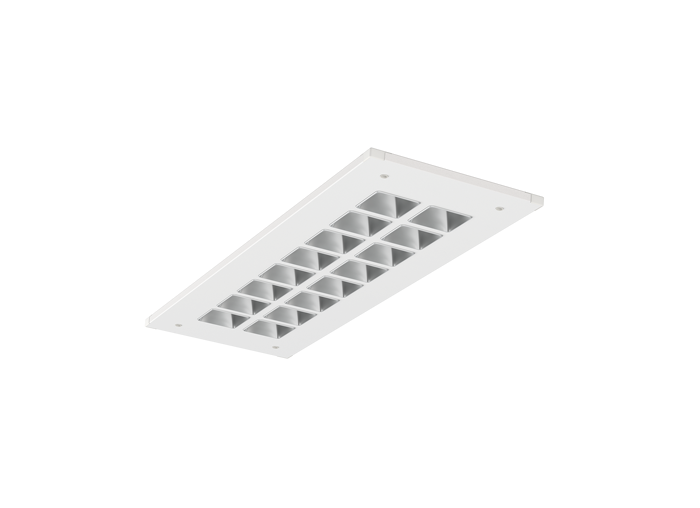

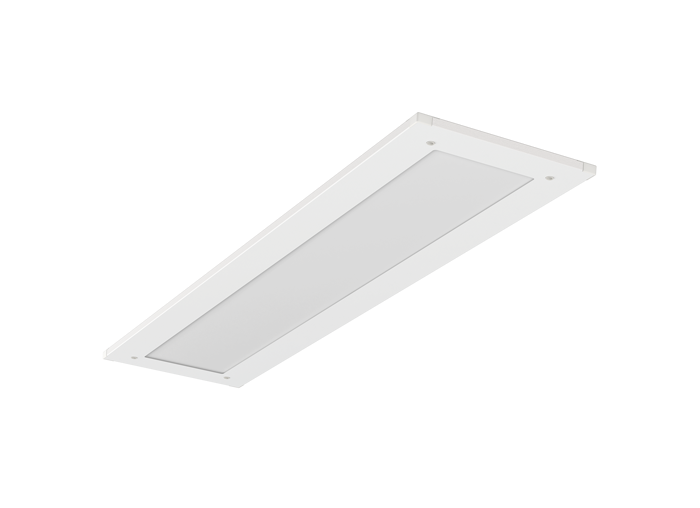

Glamox AL40-R (M) Ceiling Light

Smart, elegant lighting for all marine ceilings

The AL40-R fits nearly all marine ceilings, is easy to install, and has B0 and B15* fire ratings. (M) versions are marine approved. Robust steel housing is powder coated white RAL9016. Adjustable swing arms are included up to 52mm ceiling thickness. Diffuser IP44 in high quality Micro Prismatic (MP) or Opalic (OP) Polycarbonate. Silver Matt reflector optics (SM) for very low glare and modern look. Emergency versions with External Battery 3h (EB3). Short version possible with Internal battery (E3). Charging indicator under the diffuser. *B15 Fire rating requires extra insulation

Description

Approvals

DNV, IEC 60092-306:2009, CE, UKCA.

Light Data

Light output 2200lm to 4000lm, Light color 3000 and 4000K as standard, others on request

Integrated sensors

Available with SPR-Sensor (PIR), SMR-Sensor (Microwave) on request.

Body material and colour

Galvanised Steel, White powder coated.

Operating voltages

220-240V, 50-60Hz

Mounting

Recessed in ceiling, fast and easy mounting with four adjustable swing arms, included. Cabling; With 2xM25 wide range Polyamide cable glands or with Wago Quick Connectors In/Out (2xQCA).

EMC

EMC2 (A) as standard, EMC1 (B) available on request

Design

Elegant linear luminaire designed for life at sea

Emergency system

External battery back-up for 3h duration (EB3), short luminaire also possible with Internal battery (E3)

Please contact us for product options/specifications and for pricing.

Additional

Brand	Glamox
Nominal Lumen Out (lm)	2200, 2700, 3300, 4000
Colour Temp (K)	3000, 4000
IP Class	44 From Underneath / 20 From Above
Min AC Voltage	220
Max AC Voltage	240
LED Driver	DALI, HF: Non Dimmable
