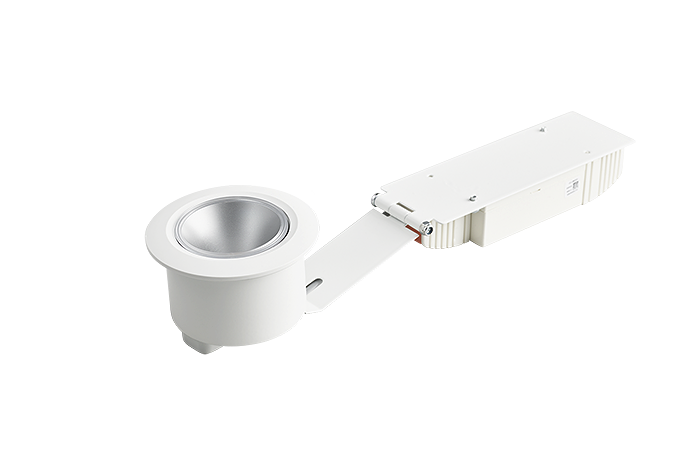

Glamox DL70-R70 (M) B0 Downlight
Description
Application
B0 fire rated ceilings in Crew and Passenger areas onboard any type of vessel. Cabins, corridors, stair cases, lounges.
Design
According to rules of marine classification societies.
Connection
Delivered with quick connectors, 2 x Wago Midi (2xQCA) as standard. Optionally with 2 x Ensto NAC (2xQCE).
Electrical specification
220-240VAC, 50-60Hz as standard, 24VDC on request. Please consult your sales representative for other voltages. EMC2 as standard for general power distribution areas, EMC1 variants for Bridge/ECR with EMC1..
Light Source
Led from 300 up to 700 lumens, Light colour 3000 or 4000K. Others on request.
Optics
Available with low glare Silver Matt (SM) reflector and Medium Beam. Optionally with Black Matt (BM) or Silver mirror type (SI) reflector. Narrow Beam on request. Reflectors are protected for dust and fingermarks by a clear ultrasonic welded diffuser as standard. Can be delivered with open reflector on request with lower IP rating.
Accessories
Wago or Ensto connectors for supply cables can be delivered as extras. Can be found under accessories.
Housing
B0 steel housing. IP55 from below. Trim rings in White (WH), Chrome (CH), Black (BL) or Brass (BR). Can be delivered with or without (WO TR) trim.
Mounting
Recessed mounting, with three screws (countersunk). For B15 fire classification please look at service manual.
Approvals
DNV, IEC 60092-306:2009, CE, UKCA.
Please contact us for product options/specifications and for pricing.
Additional
| Brand | Glamox |
|---|---|
| Nominal Lumen Out (lm) | 300, 700 |
| Optics | SM - SIlver Matt Reflector |
| Min AC Voltage | 220 |
| Max AC Voltage | 240 |
| LED Driver | DALI, HF: Non Dimmable |
| Colour Temp (K) | 3000 |
