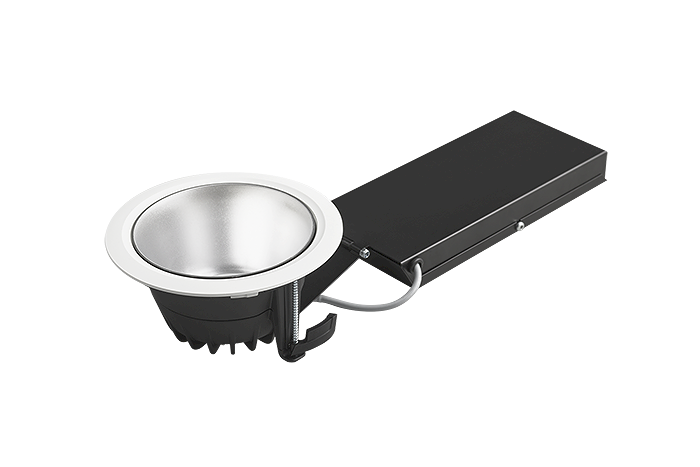

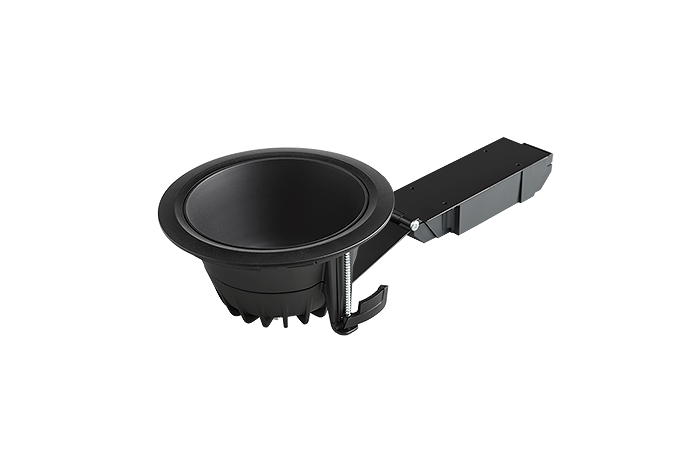

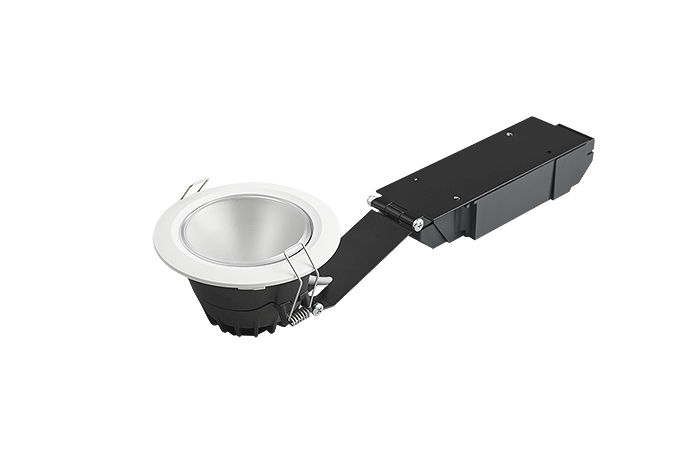

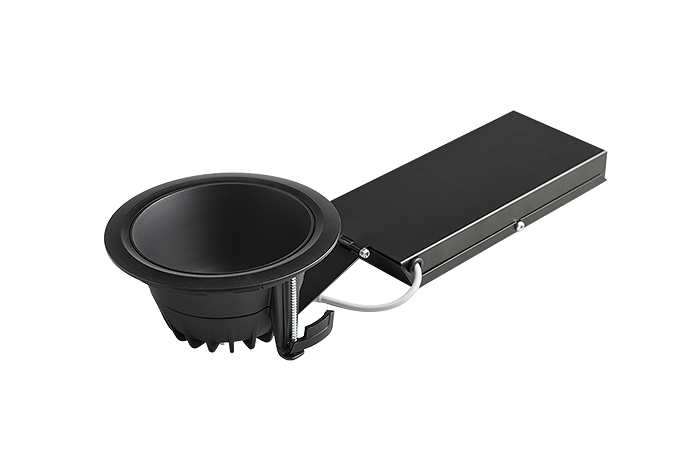

Glamox DL70-R155 (M)LED Downlight
Description
An architectural family developed for maximum efficacy. The Glamox DL70-R is a lightweight and extremely energy efficient LED downlight family suitable for marine applications on various types of vessels. It offers excellent light parameters, a long lifespan and flicker-free light with low glare. This ensures significant energy savings and sustainability while maintaining the desired visual comfort. DL70 fits nearly all marine ceilings, is easy to install, and has B15* fire approvals. (M) versions are marine approved.
Application
Crew and Passenger areas onboard any type of vessel. Cabins, corridors, stair cases, restaurants, lounges and shopping areas. Bridge and ECR with EMC1 variants. See also similar web group for B0 fire rated versions.
Design
According to rules of marine classification societies.
Connection
Delivered with quick connectors, 2 x Wago Midi (2xQCA) as standard. Optionally with 2 x Ensto NAC (2xQCE). Connection (BOX) version available with (2xM20) Cable glands.
Electrical specification
HF and DALI Available with 3h battery back-up. 220-240VAC, 50-60Hz as standard. Please consult your sales representative for other voltages of driver options. EMC2 as standard for general power distribution areas, EMC1 variants for Bridge/ECR with EMC1 in itemtext.
Light Source
Led from 800 up to 2200 lumens, Light colour 3000 or 4000K. Others on request.
Optics
Available with low glare Silver Matt (SM) reflector and Wide Beam. Optionally with Black Matt (BM) or Silver mirror type (SI) reflector. Lens on the led.
Accessories
Wago or Ensto connectors for supply cables can be delivered as extras. Can be found under accessories.
Housing
An aluminium heat sink combined with halogen-free, flame-retardant, V0-quality, glass-reinforced plastics. IP55 from below. Trim rings in White (WH), Chrome (CH), Black (BL) or Brass (BR). Can be delivered with or without (WO TR) trim.
Mounting
Recessed mounting, with 2 adjustable fixing arms for ceilings up to 50mm thickness. Possibility for screw mounting offering unlimited ceiling thickness. For B15 fire classification please look at service manual.
Approvals
DNV, IEC 60092-306:2009, CE, UKCA.
Please contact us for product options/specifications and for pricing.
Additional
| Brand | Glamox |
|---|---|
| Nominal Lumen Out (lm) | 1100, 2000, 2200, 800 |
| Optics | SM - SIlver Matt Reflector |
| Min AC Voltage | 220 |
| Max AC Voltage | 240 |
| LED Driver | DALI, DALI DT8, HF: Non Dimmable |
| Colour Temp (K) | 2700, 3000, 4000 |
