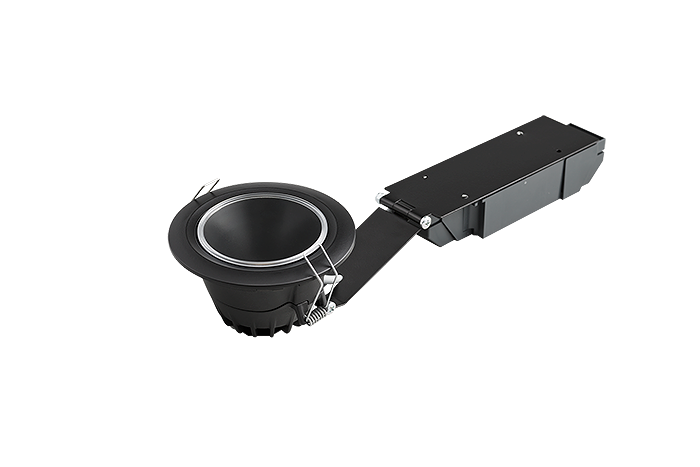

Glamox DL70-R92 (M) LED Downlight

Description

An architectural family developed for maximum efficacy. The Glamox DL70-R is a lightweight and extremely energy efficient LED downlight family suitable for marine applications on various types of vessels. It offers excellent light parameters, a long lifespan and flicker-free light with low glare. This ensures significant energy savings and sustainability while maintaining the desired visual comfort.

Application

Crew and Passenger areas onboard any type of vessel. Cabins, corridors, stair cases, restaurants, lounges and shopping areas. Bridge and ECR with EMC1 variants. See also similar web group for B0 fire rated versions.

Design

According to rules of marine classification societies.

Connection

Delivered with quick connectors, 2 x Wago Midi (2xQCA) as standard. Optionally with 2 x Ensto NAC (2xQCE).

Electrical specification

220-240VAC, 50-60Hz as standard, 24VDC on request. Please consult your sales representative for other voltages. EMC2 as standard for general power distribution areas, EMC1 variants for Bridge/ECR with EMC1.

Light Source

Led from 500 up to 1100 lumens, Light colour 3000 or 4000K. Others on request.

Optics

Available with low glare Silver Matt (SM) reflector and Medium Beam. Optionally with Black Matt (BM) or Silver mirror type (SI) reflector. Narrow Beam on request. Reflectors are protected for dust and fingermarks by a clear ultrasonic welded diffuser as standard. Can be delivered with open reflector on request with lower IP rating.

Accessories

Wago or Ensto connectors for supply cables can be delivered as extras. Can be found under accessories.

Housing

An aluminium heat sink combined with halogen-free, flame-retardant, V0-quality, glass-reinforced plastics. IP55 from below. Trim rings in White (WH), Chrome (CH), Black (BL) or Brass (BR). Can be delivered with or without (WO TR) trim.

Mounting

Recessed mounting, with 2 fixing springs for ceilings up to 30mm thickness. Possibility for screw mounting offering unlimited ceiling thickness. For B15 fire classification please look at service manual.

Approvals

DNV, IEC 60092-306:2009, CE, UKCA.

Please contact us for product options/specifications and for pricing.

Additional

Brand	Glamox
Nominal Lumen Out (lm)	1100, 700
Optics	BM - Black Matt Reflector, SM - SIlver Matt Reflector
Min AC Voltage	220
Max AC Voltage	240
LED Driver	DALI, HF: Non-Dimamable
