Glamox Max G2 | Explosion Proof Indoor/Outdoor LED Lighting

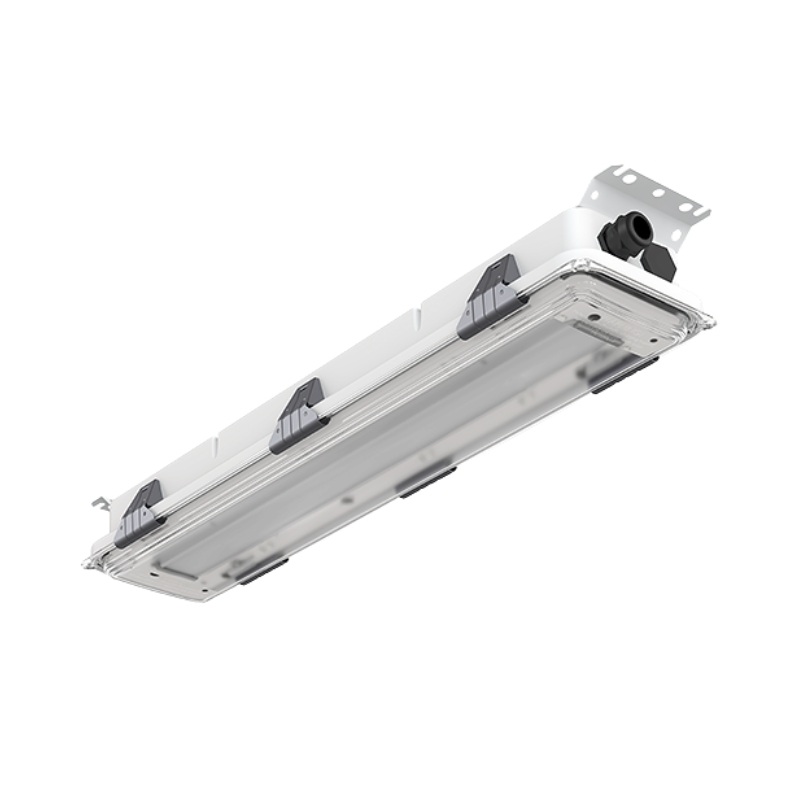

MAX G2 is a high-quality long-life Category 2-marked luminaire for Ex Zone 1/21 and Ex Zone 2/22. It’s suitable for industrial applications, ships and oil installations in areas where an explosive atmosphere is likely to occur occasionally in normal operation. The luminaire has a wide variety of installation options, minimal maintenance and excellent overall economy. The luminaire housing is manufactured in acid-proof stainless steel or aluminium/zinc treated steel with a white epoxy/polyester powder-coated finish. Alternatively, it’s available in unpainted acid-proof steel. It’s supplied with diffuser in self-extinguishing (V0) and impact-proof frosted polycarbonate with a one-piece silicone gasket and clips in acid-proof steel. MAX G2 has a hinged gear tray to facilitate maintenance. An emergency solution for 1.5- or 3-hours duration is available. It’s supplied with a fixed external battery box to achieve optimal working conditions.
Description
MAX G2 is a high-quality long-life Category 2-marked luminaire for Ex Zone 1/21 and Ex Zone 2/22. It’s suitable for industrial applications, ships and oil installations in areas where an explosive atmosphere is likely to occur occasionally in normal operation. The luminaire has a wide variety of installation options, minimal maintenance and excellent overall economy. The luminaire housing is manufactured in acid-proof stainless steel or aluminium/zinc treated steel with a white epoxy/polyester powder-coated finish. Alternatively, it’s available in unpainted acid-proof steel. It’s supplied with diffuser in self-extinguishing (V0) and impact-proof frosted polycarbonate with a one-piece silicone gasket and clips in acid-proof steel. MAX G2 has a hinged gear tray to facilitate maintenance. An emergency solution for 1.5- or 3-hours duration is available. It’s supplied with a fixed external battery box to achieve optimal working conditions.
Light Source
2500 - 8500 lumen out
Colour temperature 4000K as Standard,. 3000K , 5000K or 6000 K as options , CRI Ra 80, MacAdams 3
Cable entry
1-4 x cable glands:
M20 polyamide (cable Ø6-12 mm)
M20 nickel plated brass (cable Ø4-12 mm)
M25 polyamide (cable Ø11-17 mm)
M25 nickel plated brass (cable Ø10-18 mm)
Driver
Fixed output (HF) or DALI2 driver. Dali2 is dimmable .
Connection
6 pole 6 mm² screw terminal block.
6 x 2.5 mm² through wiring (TW).
2 pole 4 mm² push in terminal block for DALI termination
Mounting
The luminaire is supplied with fixed end brackets, triangle suspension or 2 x M8 hood nuts. Bracket for horizontal wire and removable bracket to be mounted on the fixed end bracket. M8 rod -, tube -, pole -, cable bridge -, side - and vibration suspension to be mounted through the M8 hood nut. M8 hood nuts with flexible CC and other special suspensions on request.
Emergency system
Emergency solution for 1.5 or 3 hour duration is available.
Fixed external battery box to achieve optimal working conditions.
Please contact us for product options/specifications and for pricing.
Available Options
Nominal Lumen Out(lm) 1000-8500
Min AC Voltage 220 or 230
Max AC Voltage 254
Length(mm) 687-1768
Light Source/LED Colour LED Only
Additional
| Brand | Glamox |
|---|---|
| Nominal Lumen Out (lm) | 1000, 2000, 2200, 2500, 3500, 4000, 4500, 5000, 7000, 8500 |
| Min AC Voltage | 220, 230 |
| Max AC Voltage | 254 |
| Length (mm) | 1296, 1334, 1419, 1468, 1634, 1768, 687, 724, 810, 858 |
| Light Source / LED Colour | LED |
