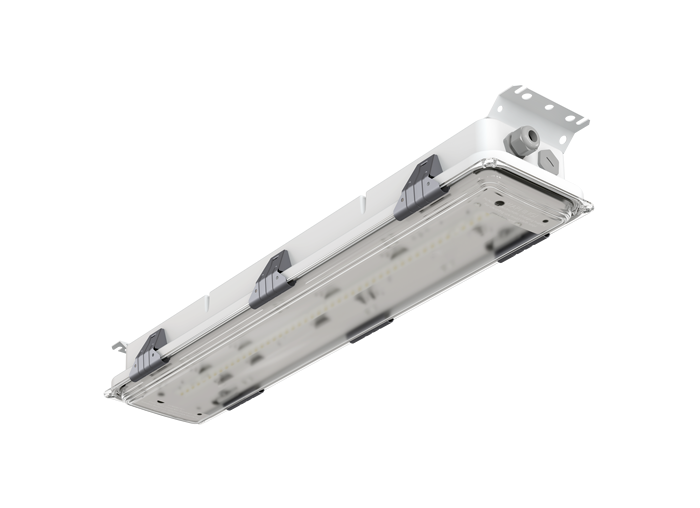

Glamox MIR G2 Surface-Mounted Luminaire
Description
MIR G2 is a watertight, surface-mounted luminaire in the MULTI family. Ideal for demanding industrial, humid, cold, warm, or sterile environments, it’s also suited for coastal and marine areas. A reliable choice for challenging lighting projects.
Light Source
2500 - 11 000 lumen out
Colour temperature 4000 K, CRI Ra 80, MacAdams 3
On request: 3000/5000/6500 K
Colour temperature 4000 K, CRI Ra 80, MacAdams 3
On request: 3000/5000/6500 K
Mounting
The luminaire is supplied with fixed end brackets, triangle suspension or 2 x M8 hood nuts. Bracket for horizontal wire and revolvable bracket to be mounted on the fixed end bracket. M8 rod -, tube -, pole -, cable bridge -, side - and vibration suspension to be mounted through the M8 hood nut. M8 hood nuts with flexible CC and other special suspensions on request.
Emergency system
Can be supplied with emergency lighting systems (Standard, Self Test , DALI addressable or Wireless Radio Self Test) with internal battery or external battery box.
Some emergency variants are also marine approved (M).
Driver
Fixed output (HF) and DALI dimmable (10-100%).
Driver life time up to 120 000 h/10 % (max failure) at Ta 25°C.
Driver life time up to 120 000 h/10 % (max failure) at Ta 25°C.
Cable entry
1-4 x cable glands:
M20 polyamide (cable Ø7-14 mm)
M20 nickel plated brass (cable Ø4-12 mm)
M25 polyamide (cable Ø9-18 mm)
M25 nickel plated brass (cable Ø10-18 mm)
M20 polyamide (cable Ø7-14 mm)
M20 nickel plated brass (cable Ø4-12 mm)
M25 polyamide (cable Ø9-18 mm)
M25 nickel plated brass (cable Ø10-18 mm)
Integrated sensors
This product is available with an industrial PIR sensor for wireless communication type CHW-SEN. CHW-SEN is a part of Glamox wireless system for central monitoring.
Body material and colour
Housing in aluminium/zinc treated steel or acid-proof steel with white epoxy/polyester powder coated finish. Alternatively in unpainted acid-proof steel. The diffuser is made of impact-proof frosted polycarbonate (FR/PC) or modified impact resistant frosted acrylic (FR/KEM) with a one-piece silicone-free gasket and clips in acid-proof steel.
Connection
5 pole 6 mm² screw terminal block.
Variants with 5 x 2.5 mm² through wiring.
Variants with 5 x 2.5 mm² through wiring.
Accessories
Suspension kits.
Please contact us for product options/specifications and for pricing.
Additional
| Brand | Glamox |
|---|---|
| Colour Temp (K) | 4000 |
| LED Driver | DALI: Dimming, HF: Non-Dimmable, WR-D: Wireless Radio DALI |
| Colour | White |
| Light Distribution Share Up | 2 |
| Optics | FR/KEM - Frosted diffuser in modified impact resistant acrylic, FR/PC - Frosted diffuser in polycarbonate |
