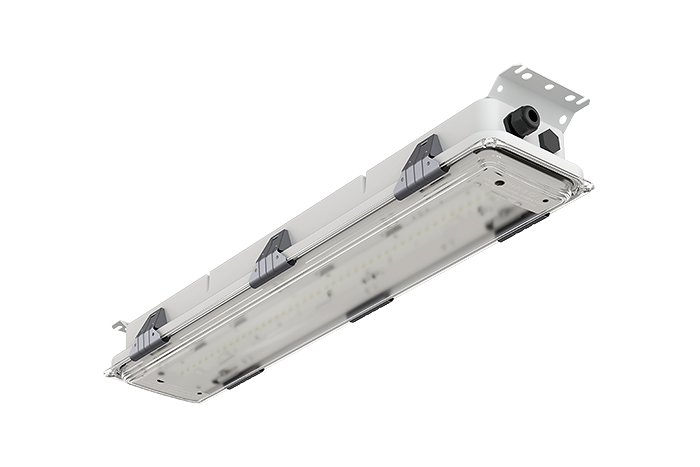

Glamox MIX G2 Indoor/Outdoor LED Light

Description

MIX G2 is a high-quality long-life Category 3-marked luminaire for Ex Zone 2/22. It’s suitable for industrial applications, ships and Energy installations in areas where an explosive atmosphere occurs only exceptionally for short periods. The luminaire has a wide variety of installation options, minimal maintenance and excellent overall economy. The luminaire housing is manufactured in 316L - acid-proof stainless steel or aluminium/zinc treated steel with a white epoxy/polyester powder-coated finish. Alternatively, it’s available in unpainted acid-proof steel. It’s supplied with a diffuser in self-extinguishing (V0) and impact-proof frosted polycarbonate with one-piece silicone gasket and clips in 316 L acid-proof steel. MIX G2 has a hinged gear tray with a quick connector to facilitate maintenance. An emergency solution for 1.5- or 3-hour duration is available. It’s supplied with a fixed external battery box to achieve optimal working conditions.

Light Source

2500 - 7500 lumen out
Colour temperature 4000 K, CRI Ra 80, MacAdams 3

Mounting

The luminaire is supplied with fixed end brackets, triangle suspension or 2 x M8 hood nuts. Bracket for horizontal wire and revolvable bracket to be mounted on the fixed end bracket. M8 rod -, tube -, pole -, cable bridge -, side - and vibration suspension to be mounted through the M8 hood nut. M8 hood nuts with flexible CC and other special suspensions on request.

Emergency system

Emergency solution for 1.5 or 3 hour duration is available.
Fixed external battery box to achieve optimal working conditions.

Driver

Fixed output (HF) and DALI dimmable (10-100%).
Driver life time up to 120 000 h/10 % (max failure) at Ta 25°C.

Cable entry

1-4 x cable glands:
M20 polyamide (cable Ø6-12 mm)
M20 nickel plated brass (cable Ø4-12 mm)
M25 polyamide (cable Ø11-17 mm)
M25 nickel plated brass (cable Ø10-18 mm)

Accessories

Suspension kits.

Body material and colour

Housing in aluminium/zinc treated steel or acid-proof steel with white epoxy/polyester powder coated finish. Alternatively in unpainted acid-proof steel. The diffuser is made of impact-proof frosted polycarbonate with a one piece silicone gasket and clips in acid-proof steel.

Connection

5 pole 6 mm² screw terminal block.
Variants with 5 x 2.5 mm² through wiring.

Please contact us for product options/specifications and for pricing.

Additional

Brand	Glamox
Nominal Lumen Out (lm)	2500, 5000, 7500
Min AC Voltage	220
Max AC Voltage	240
Length (mm)	1334, 1468, 1634, 1768, 724, 858
Light Source / LED Colour	LED
