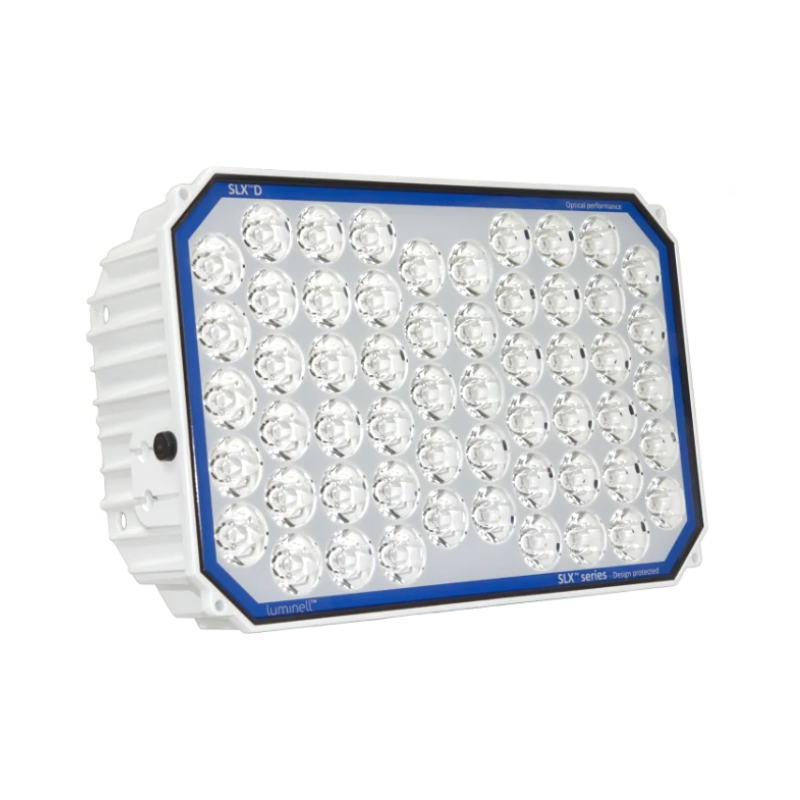

Glamox SLX D G3 Searchlight Modules
Description
The SLX D G3 LED Searchlight Module is created to push the boundaries of LED technology and to replace and outperform conventional Halogen searchlights. Its rugged and compact design enhances safety and operational efficiency in the harshest maritime environments, while minimising maintenance needs. Experience superior optical performance and reliability with the SLX Searchlight Module.
SLX D G3 is delivered without bracket.
For refitting Norselight Searchlights with SLX D LED, the following will be needed
- SLX D Searchlight Module with the desired beam option.
- Compatible Norselight Fork Assembly Kit - External PSU/Drivers if the SLX D 24VDC version is chosen.
- Gel Kit for filling and fully sealing the connection box after terminating cables.
Benefits of SLX D:
- Fantastic range with 1 lux up to apx 2.000m and 0.25 lux to detect reflexes up to 4.000m
- Instant light
- Minimal maintenance
- Different bracket kits available
- One or two different beam types per SLX ™ module
- Very even light distribution Dimmable – perfect in snow, fog or similar conditions
- Compact, sealed and highly resistant to vibrations and shocks
- Proven endurance Available in 24VDC and 230VAC . For 100-277VAC input, choose 24VDC version and external PSU.
Candela (measured): Up to apx 4MCd (SB3.5)
Light colour temperature: 5-7000K
Ambient temperature (Ta): – 40° C to + 55° C
Range with 1 lux at target: Up to 2.000m (SB3.5)
Power consumption: Up to 500W
Ingress protection: IP 66/67
Beam angle: SB3.5 , SB6, SB3.5/SB6
Input voltage: 24VDC (22-30VDC) and 230VAC (220-254VAC)
Mounting: The searchlight modules are delivered without brackets as standard.
Additional
| Brand | Glamox |
|---|---|
| Options | SLX D SL 500W230VACD SB3,5 5-7K 3LAAWT, SLX D SL 500W230VACD SB6 5-7K 3LAAWT, SLX D SL 500W24VDCD SB3,5 5-7K 3IAAWT, SLX D SL 500W24VDCD SB3,5SB6 5-7K 3IAAWT |
