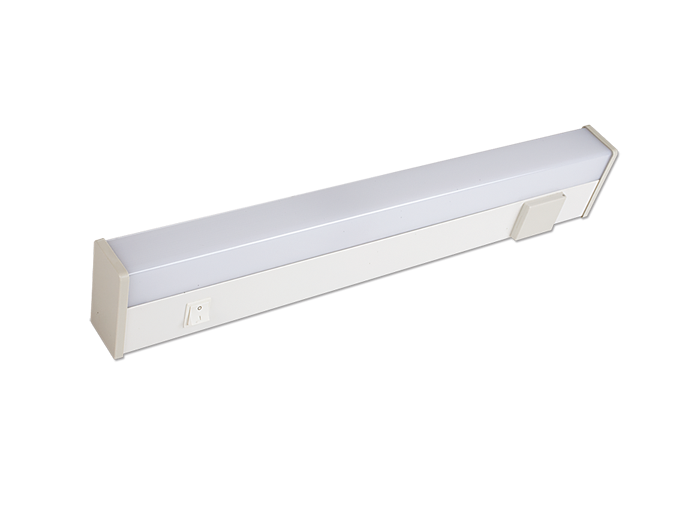

Glamox TL14 LED Mirror Lamp
Description
LED Mirror lamp for wall mounting above or on side of mirror. Rectangular design. Correct mirror lighting with soft light distribution. Robust, steel housing with spring operated plastic end caps. Powder coated white RAL9016. OP = Diffuser in Opal polycarbonate V0 quality. S = Switch, U = Universal razor socket with transformer and selector 230/110V. SSC = Switch and Schuko Socket. 300 HF replaces 8W tube, 800 HF replaces 15W tube and 1000 HF replaces 18W T8 tube. Due to latest LED technology the lamp is energy and maintenance saving.
Application
Mirror lamp for wall mounting above or on side of mirror. Also available as bed light as a short 300lm version.
Optic
Opal polycarbonate diffuser in V0 quality
Mounting
To be installed directly to wall or ceiling
Housing
Steel housing with spring operated end caps
Electrical specification
With electronic driver 120-240V, 50-60Hz. Variants with two-pole switch (S), with universal shaver socket and transformer for 110/220V (U) or with Schuko Socket (SC) are available.
Connection
One hole Ø19 mm with grommet in back. One knock-out Ø19 at top. One 3-way push in terminal block, 2 x 2.5 mm².
Finish
Powder coated white RAL9016
Light Source
LED 300, 800, 1000 or 2000 lm, 830
Please contact us for product options/specifications and for pricing.
Additional
| Brand | Glamox |
|---|---|
| Nominal Lumen Out (lm) | 1000, 300, 800 |
| Colour Temp (K) | 3000, 4000 |
| IP Class | 44 |
| Min AC Voltage | 100, 110, 220 |
| Max AC Voltage | 120, 230, 240 |
| LED Driver | HF: Non Dimmable |
