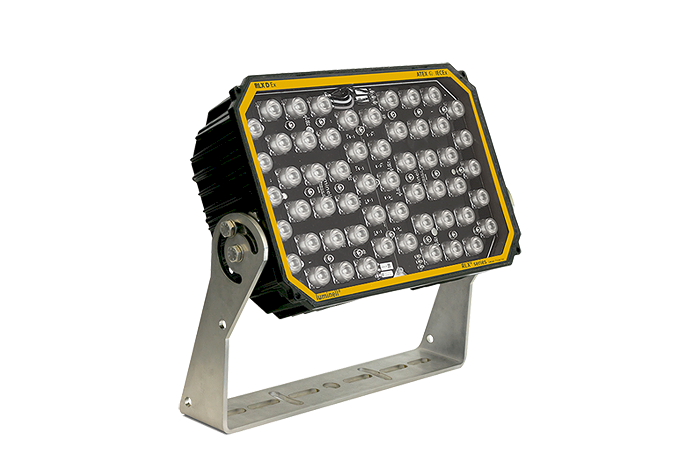

RLX DX Floodlight
The RLX Dx Z2.21 is an Ex Zone 2 certified LED floodlight for tankers, oil rigs, and other hazardous areas. The RLX Dx Z2.21 LED floodlight is crafted to be appreciated from installation to end-user, both ATEX and IECEx zone 2, 21, and 22. The lamps are lightweight with simple termination, and no flame path to maintain. Both the encapsulated electronics and durable mechanics maximise the potential of the LED technology, for demanding applications. The RLX™ DxZ2.21 LED floodlight will endure very corrosive environments, as well as shocks and continual vibrations. It also lives up to strict EMC/EMI standards. By utilising the various light-beam options, the RLX™ DxZ2.21 LED floodlight is the ideal floodlight to improve one’s total light solution. ATEX and IECEx approved. Zone 2, 21 and 22 Low weight, 15 kg No specific conditions for use or installation. “X-FREE” Wide operating temperatures -55° C to +55°C Extreme lifetime up to 320 000 hrs @ 25°C Light efficiency up to 80% savings from conventional lamps No flame path, no maintenance Remarkable EMC/EMI characteristics Crafted for demanding marine and offshore conditions DALI Options
Description
Initial lumious flux
Beam angle
Ambient temperature (Ta)
Light colour temperature
Input voltage
Ingress protection
Color Rendering Index
Power consumption
Dimming
Additional
| Brand | Glamox |
|---|---|
| Nominal Lumen Out (lm) | 22100, 23100, 24400, 27200, 28400, 29000 |
| Beam Angle | 15°, 40°, 60 x 40, 60°, 80 x 60 |
| Colour Temp (K) | 3000, 5000 |
| IP Class | 66/67 |
| Min AC Voltage | 100 |
| Max AC Voltage | 277 |
| Min Ta (°) | -55 |
| Max Ta (°) | 55 |
| Cable Glands | M25 - Nickel Plated Brass |
| EPD | No |
| Certification | ATEX, Ex Zone 2, Ex Zone 21, Ex Zone 22, IECeX, INMETRO |
